Wall-Mounted Stainless Steel Outdoor Water Fountain Machines Pipeline Large Water Dispensers

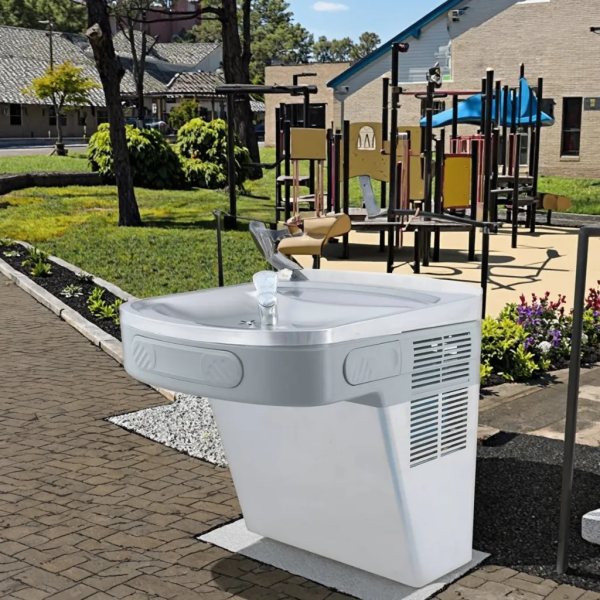

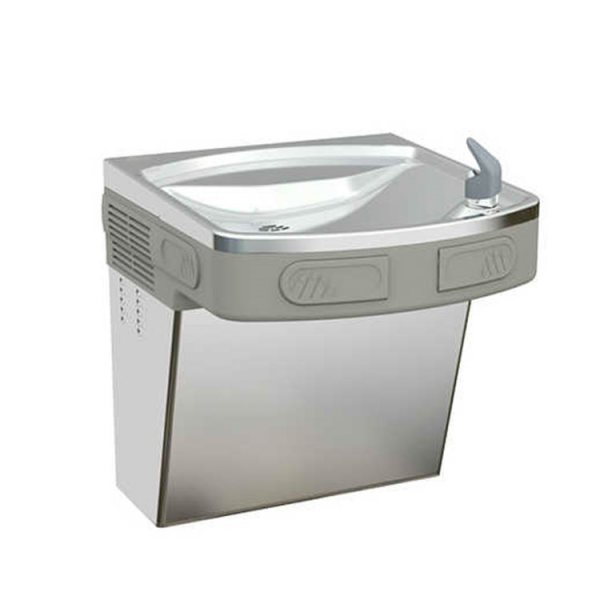

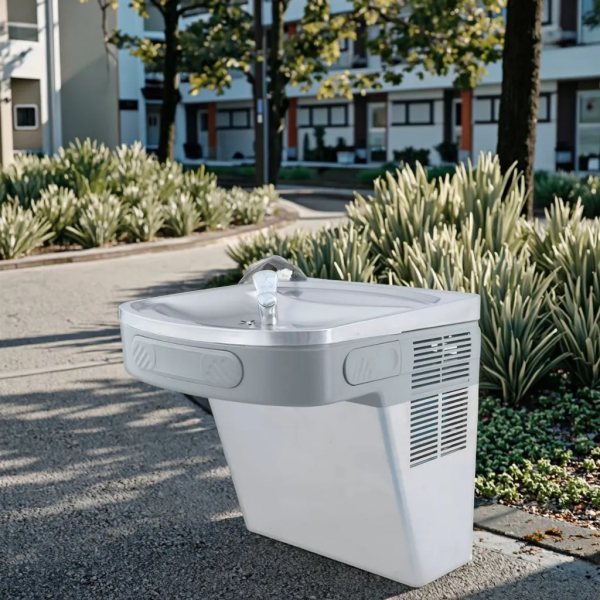

Wall mounted electric water dispenser, It's one of the most suitable drinking water fountains for schools, hospitals, office buildings,airports, stations, messroom and other various public areas. Easy inductive switches from 3 directions -- front, left side an right side, considerate for disabled people use.
Features
1.Complete cooler and bottle filling station in a consolidated space saving ADA compliant design
2.Waterways Are Lead-Free In Materials & Construction

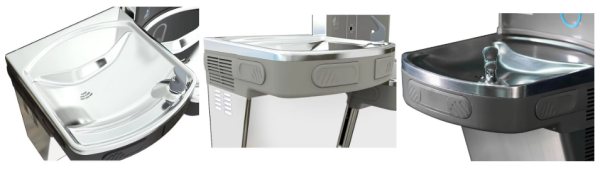

3.Stainless Steel Faucet Top One Piece, Large Flow, Flexible Bubbler Guard
4.Heavy Duty Stainless Steel Frame
5.High Efficiency Cooling Ice Tank and Coil
6.Refrigerant R-134a
7.Four Push Pad Manual Activation on water cooler
8.External Stream Height Adjustment on cooler
9.Feed water pressure: 0.1-0.35Mpa
10.Operating pressure: 0.4-0.6Mpa
11.Rated voltage:110V/220V 50/60Hz
12.Rated power consumption: 800w
13.Suitable feed water: residential tap water
14.Suitable ambient temperature: 5 to 38 cent degree
15.Suitable feed water TDS: 500ppm (maximum 2000ppm)
16.Wall mounted installation
| Item | Specifications |
| Rated voltage | Single phase: 100V or 110/115/120V or 220/230/240V |
| Rated frequency range | 50Hz-60Hz |
| Dispensing way | Manual-mechanical |
| Dispense capacity (L/H) | 20L/H (8-12℃） |
| Rated power | 200W |
| Cooling system | Compressor: Single phase motor (Huayi/Danfu) |
| Refrigerant: R134a/R600a | |
| Temp range: 8-12°C(46.4-53.6°F) | |
| Material of cold tank: SUS304(S.S) | |
| IEC protection class | Class 1 |
| Product dimensions(cm) | 450*475*590mm |
| Loading Qty (pcs) | 1* 40ft/HQ 480pcs |
If you would like to discuss your requirement or need any additional information on our water dispenser, please do not hesitate to contact our sales team.
