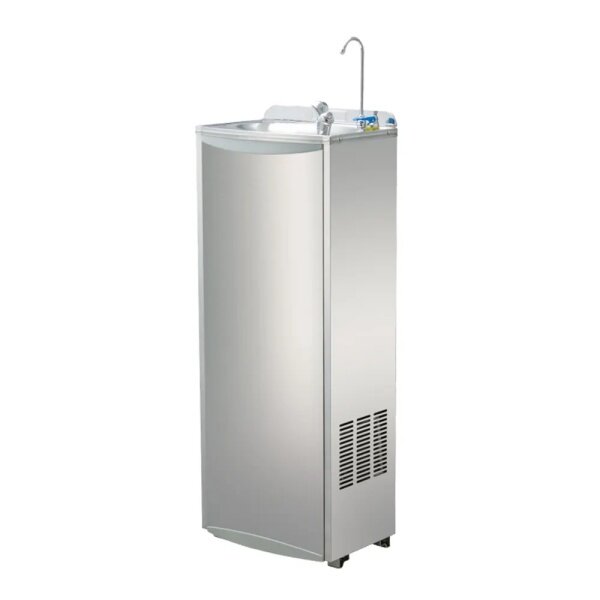

Hot Sell Stainless Steel Material Hot Cold Drink Water Dispenser Machine

Model:QRC-22-05
Description Package Information Inquiry

Wall mounted electric water dispenser, It's one of the most suitable drinking water fountains for schools, hospitals, office buildings,airports, stations, messroom and other various public areas. Easy inductive switches from 3 directions -- front, left side an right side, considerate for disabled people use.

Advantages:

1. Elegant mirror steel plate casing

2. Environment-friendly & energy efficiency design

3. Food grade stainless steel hot and cold tanks, healthy and safe

4. 360-degree free turning faucets, to fit any water bottle, convenient water spout, no need of cup

5. Cold tank - SUS304 hygienic stainless steel tank

    External copper coil evaporator

    Insulated with expanded polystyrene

6. Hot tank - SUS304 hygienic stainless steel tank

    Highly efficient internal replaceable heating element

    Fireproof insulation with expanded polystyrene

   Primary adjustable hot water thermostat, and with manual reset safety limiter

7. Refrigerating - hermetically sealed compressor with automatic overload protector

   Fan cooled condenser with cooper tube and aluminum fins

   Refrigerant HFC-134a is controlled by accurately calibrated capillary tube

8. Purifier - built-in water purifier optional

1). 2-stage pre-filter: PP sediment + activated carbon block

2). 3-stage: PP sediment + activated carbon block + coconut shell GAC

3). 4-stage: PP sediment + activated carbon block + coconut shell GAC + UV lamp

4). 5 stage reverse osmosis pure water system, with booster pump and pressure tank

5).Others upon customer's request


ItemSpecifications
Rated voltageSingle phase: 100V or 110/115/120V or 220/230/240V
Rated frequency range50Hz-60Hz
Dispensing wayManual-mechanical
Dispense capacity (L/H)20L/H (8-12℃)
Rated power200W
Cooling systemCompressor: Single phase motor (Huayi/Danfu)
Refrigerant: R134a/R600a
Temp range: 8-12°C(46.4-53.6°F)
Material of cold tank: SUS304(S.S)
IEC protection classClass 1
Product dimensions(cm)

305*315*1220mm

Loading Qty (pcs)1* 40ft/HQ 518pcs


If you would like to discuss your requirement or need any additional information on our water dispenser, please do not hesitate to contact our sales team.
